MiniDCC© - A Digital Command Control Do-It-Yourself Project!


Analog Potentiometers Extension Boards including USB/UART chip!


Pre-programmed 16F1938 MiniDCC version 3 available now!

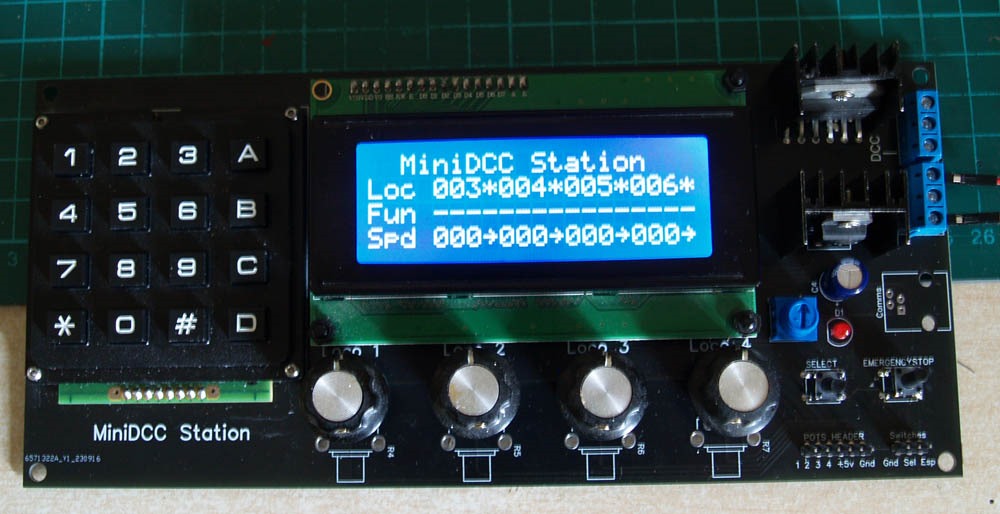

PCB - MiniStation + MiniBooster on one board available now! (see SHOPPING STORE below)

Fully populated boards available including 16F1938 chip and LMD18200T H-Bridge Mosfet booster. (see details below)







Interface Boards for DCC MiniStation©

For easy interfacing the 4 potentiometers two additional PCBs are available now, one of them for potentiometers with push-button to change direction. Both PCBs offers an USB/UART converter, using Microchip 16F1455, to provide a simple but efficient USB access to firmware updates and allows saving and loading of turnouts routes, as well as controlling / programming basic functions of 4 locos. These addional PCBs simpilfies the wiring and offers each, beside the USB A connector, also two alternative interfaces either for Flat (0...F) or Telephone (0..D,*,#) type keypads.



DCC MiniStation� Version 2.0

The MiniStation� has been improved considerably over the years. We have moved to a 28 pin template to allow for added features such as 4 discrete potentiometers for speed control, a UART/USB link for firmware update as well as Turnouts (Switches) route saving and loading using a PC. The companion MiniBooster� now provides for CV reading facility as well as complete power shutdown upon Emergency Stops.
The memory assigned to Turnout routes as been increased to double the size available under the old 16F628. An extended Menu offers choice of display (16x2 or 20x4), Keypad or Potentiometer control, saving and retrieving Turnout routes, etc.



DCC MiniBooster�

While the MiniDCC� station can operate with any compatible NMRA booster, the optional MiniBooster� integrates the function of READING as well as WRITING to CVs using the usual NMRA protocol. The LMD1800T is an efficient MosFet bridge, providing up to 3 amps of DCC power with full short circuit and high temperature protection built-in. A double-sided PCB designed by John Zajdler is now available. Now you can control up to 4 trains simultaneously, up to 99 different turnouts/switches on 26 different routes (over 240 events) and program all your decoders (Read and Write) using any one of the 3 NMRA standards at a fraction of the cost of a commercial unit!

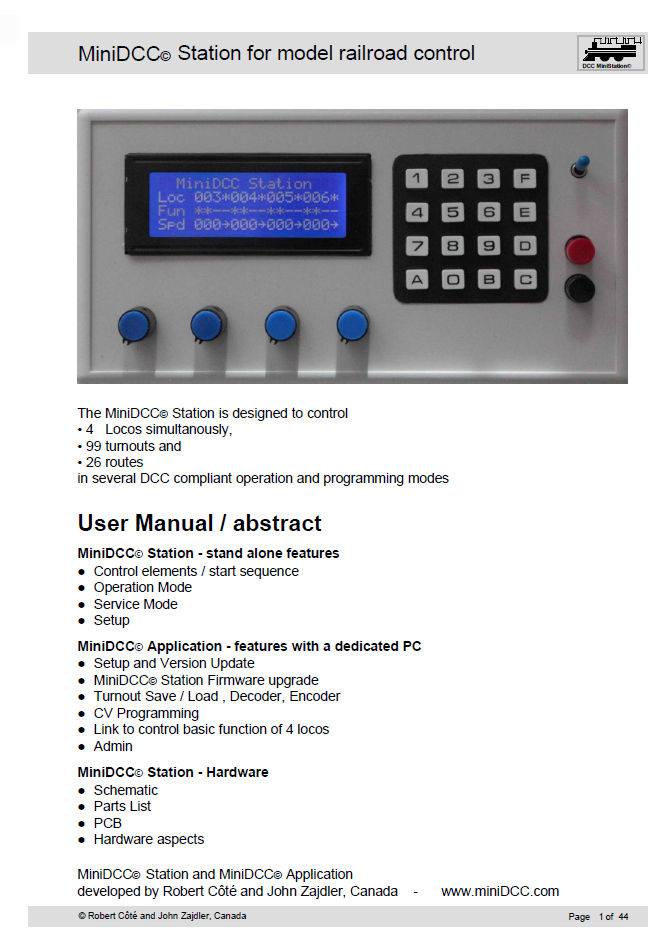

Detailed instruction Manual in PDF format

* This manual was developped and written by a good friend of us in Germany... We are grateful!






Write for more info...!


New version 2.0 - 16F1938


Firmware Updater/Programming/Turnout Save and Load
Schematic and Parts list
PCB Layout
Latest 16F1938 HEX file
SHOPPING STORE NEW!!!

Version 1.0 Schematics (Legacy)


16F628 circuit
16F84A circuit
MiniBooster� circuit

Legacy source code Version 1.0 (16F628) and manuals


Source Code/User Manual
